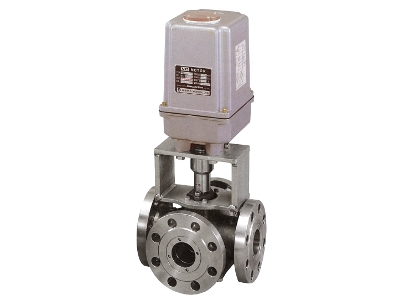

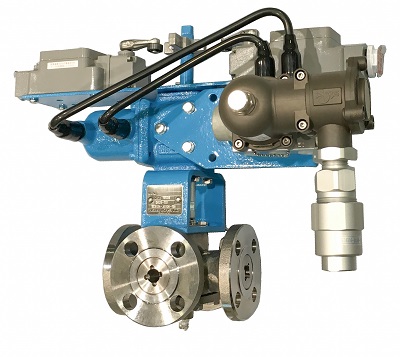

D43M TRUNNION MOUNTED, METAL TOUCH, 4-WAY BALL VALVE

Features

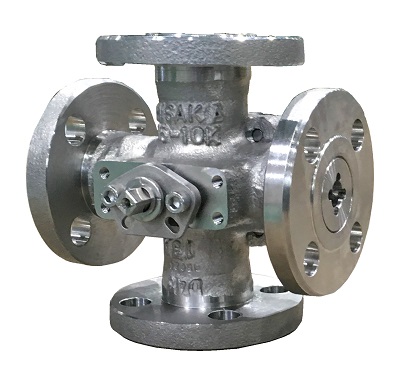

The 4-way ball valve has an X port for the ball to switch the flow direction.

●In addition to powders, slurries, high-viscosity fluids, and high-temperature fluids, which are difficult to handle with soft sheets, they can be used under severe conditions such as high opening and closing frequency.
●Since the ball and rotating slide parts are hardened, they are not rubbed and have excellent durability.
●It is possible to cope with all types of fluids by changing the curing process of the ball and sheet depending on the fluid.

Specification

Production Range
Connection Rating  : JIS10K, JIS20K, ASME 150#, ASME 300#
Size  : 15A(1/2”)~200A(8”)
Material  : SCS13A, SCS14A and other

Hardening treatment
Ball  : Isoniter, New kanac, Meteco 16c
Sheet  :Stellite 6

Usage

Diverting for high pressure condition (over 1MPa fluid)
Diverting for big differential pressure line
Neccessary for high durability line
Petrochamical, steel, etc

Option

Anti-static, Gland O-ring seal, Key-Rock, Special Painting, High pressure gas, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port
