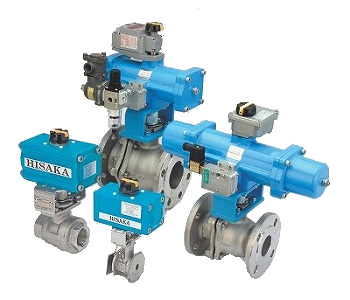

A-series actuator
Features
| Fluid | Air |
|---|---|
| Maximum Operating Pressure | 0.69MPa (7kg/cm2G) |
| Permissible Environment Temperature | -15°C～＋80°C |
| Lubrication Oil | No need |
| Guaranteed Operation Cycles | 100,000 cycles |
| Rotation Angle | 90 degree |
- Mechanism is double scotch yokes type. And It achieved to be compact and light weight by aluminum body. The material of drive shaft is SS304 and improved accuracy and durability.
- Actuator is possible to use at the outdoors because of weather proof enclosure.
- It is possible to stop the looseness gland bolts and to tighten easily, because the valve and the actuator are fixed by 4 bolts for the purpose to fix it only.
- Actuator achieved to be compact, because we developed special solenoid valve, limit switch, filter regulator and speed controller for this A-series actuator.
- Solenoid valve is possible to assemble to actuator directly without air tubing.

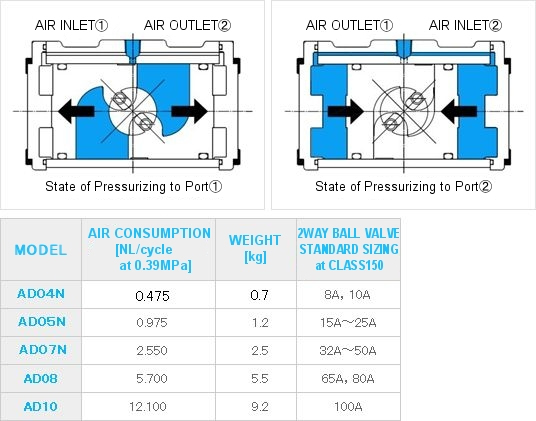

AD type double acting actuator

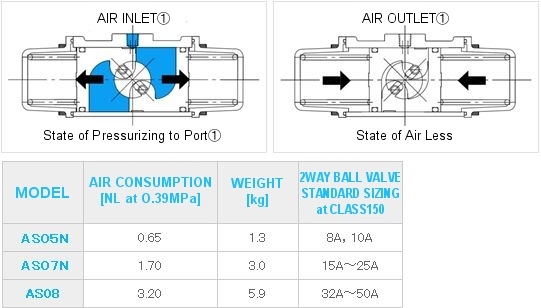

AS type single acting actuator
DIMENSION
