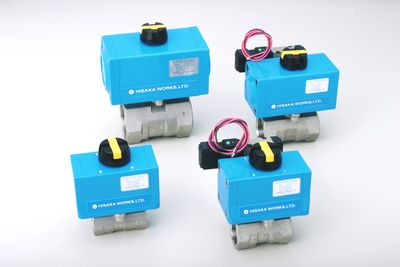

HBST-MD SCREW ENDS, ON-OFF BALL VALVE(ECONOMICAL MODEL)

Features

This model is realized compact size with compact and
light weight actuator.
●Suitable for utility line(water, air , etc), simple design and low cost
  valve.
●For gland packing is used o-ring. It's un-neccessary to additional
  tighten gland bolts.
  And durability is also high.
●Solenoid valve and limit switch can be attached to actuator, directly.
  It is easy for piping design and piping work.

Specification



Production Range
Connection Rating  :  RC(JIS B0203)
Size  :  8A(1/4”)~25A(1”)
Material  :  SCS14A

●Actuator
Output construction : Rack & Pinion
Operation press. : 0.39MPa~0.69MPa
Operation temp. : -10℃~60℃
Operation atmos. : Inside Building
Guarantee operation times : 100,000times

●Accessories
Solenoid Valve
Model : 4KB119 Lead Wire type
Electric voltage : AC100V,AC110V,AC200V,AC220V,DC24V
Conduit : RC1/8
Safety Class : IP62
Limit Switch
Model : VCS-5002
Safety Class : IP64

●Specification of valve body
Standard of screw : JIS B0203

Usage

Utility Line(water, air and etc)

Option

Oil & Water free treatment
