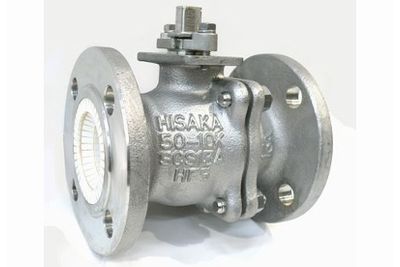

This valve is lined by ceramic chips, much increased abrasion resistance and suitable for harden and high speed line of powder conveyer sestem.

●With modificate for general valves, therefore it realized economical
and short delivery time. And it is possible to do machining
complicated shape also.

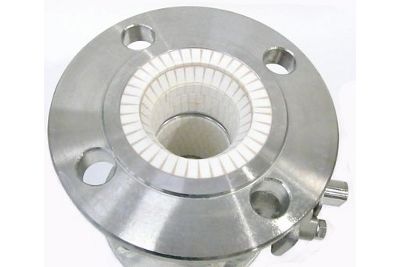

●In the part of port, it's protected peeling ceramic chips and erosion
  at edge part by lining L-shape corner chips.
●The linning chips is linned by staggered row, and it can be
  protected erosion and peeling  on masonry joint.

Production Range
Connection Rating　：　JIS 10K, ASME 150#
Size　：　15Ａ(1/2”)～300Ａ(12”)
Material　：　SCS13A, SCS14A, SCS16Ａ, A216‐WCB, ＦＣＤ450, ＦＣ200
                　and others

Connection Rating　：　JIS 20K, ASME 300#
Size　：　15Ａ(1/2”)～250Ａ(10”)
Material 　：　SCS13A, SCS14A, SCS16Ａ, A216‐WCB and others

Ceramic Parts
Ceramics　：　Alumina92％
Chips　：　Chip(t1.5、t3)
Adhesive　：　Nomal Temp. Harden type, Epoxy or Silicon.
Max. Temp.：　Epoxy　below 150℃
Scilicon  below 200℃
Abrasion resistance　：　20times(compared with FC200)
Chemical resistance　：　depend on chemical(Please contact and check us.)

Experience(powder fluid)
Fly Ash, Fine coal, Silica, Cement Powder, Plastics,  Calcium oxide, Casting sand, Mineral stone, Iron powder, Diatomite and so on

High hardness, high speed powder conveyer system

Anti-static, Gland O-ring seal, Key-Rock, Long Bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Beveling port and etc
