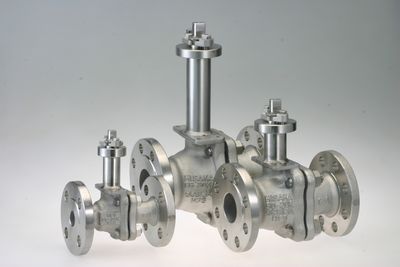

HF5(LB) LONG BONNET, BALL VALVE

Features

This model can be attached thermal insulation easily, because gland part is extended for general model (HF5). With this design, suitable for need keeping warm and cold fluid application

●Easy work for attaching thermal insulation.
●Gland point that in higher than insulation realized "easy insertion of hand lever", "easy operation of valve" and "clearly checking valve position".
●Length of gland is 160mm longer than general model.
●Long bonnet gland is keeping stock for short delivery time.

Specification

Production Range
Connection Rating : JIS 10K, ASME 150#
Size : 15A(1/2”)~300A(12”)
Material : SCS13A, SCS14A, SCS16A and etc

Connection Rating : JIS 20K, ASME 300#
Size : 15A(1/2”)~250A(10”)
Material : SCS13A, SCS14A, SCS16A and etc

Length of Bonnet
HF(16LB) series (standard)
●Length of bonnet is 160mm longer than general model.


Available Model
HF5,HS5,HJ5,HF5(M1),HJ5(M1) and etc
*Not suitable for FC200, FCD body material. Because bonnet is
      attached by welding.
    *On-Off control valve is also suitable.

Usage

Application that need keeping warm/cold, High/Low temp., Chemical, Medicine and etc

Option

Anti-static, Gland O-ring seal, Key-Rock, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port, PIG system, Hard Facing of Port, Ferrule ends and etc
