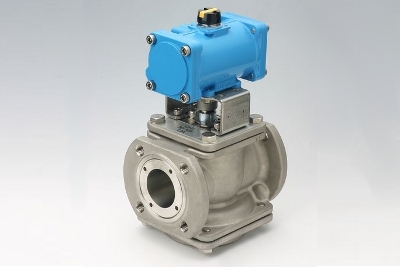

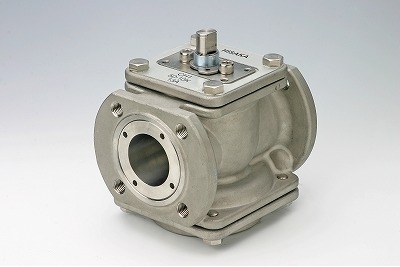

CH1 SEMI JACKET, CHOCO&FOOD, 2-WAY BALL VALVE

Features

This model is designed for food application, and semi-jacket design is especially suitable for harden fluid like chocolate.

●Port dia is suit for PIG line of food application, realized improvement the yield rate of production.
●Valve port and flange size is same size, therefore it is light weight
 and compact size.

Specification

Production Range
Connection Rating : JIS 10K
Size : 40A(1-1/2") , 50A(2”) , 65A(2-1/2”) , 80A(3")
Material : SCS13A

Usage

Fluid that easily harden(like Chocolate), High Viscosity, Fluid that hardened on normal temperature

Option

Gland O-ring, Key-rock, PIG spec.
