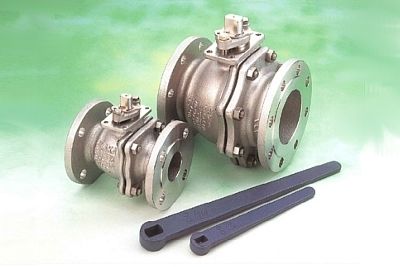

This model is for general application, and usable for
may kinds of industries(chｅmical, petrochemical, steel and so on.).
●Top of stem shape is rectangler, therefore it can be protected mis-operation.
●With standardization of ball seat "Maxtite PTFE", it was realized to get a long life.
There are some seat materials, It can be selected material depends on application.
●Fire safe construction
(Anti-blow out stem, secondary metal touch, metal touch ball seal.)
●Anti-static device for releasing the remaining static electricity. (Option)
●Gland packing combined with stem bearing, and can get a perfectly seal and can keep it. And it is able to progress durability.
●Key rock device can rock at Full Open and Full Close position, and it can be protected mis-operation completely.
Connection Rating ： JIS 10K, ASME 150#
Size ： 15Ａ(1/2")～300Ａ(12")
Material ： SCS13A, SCS14A, SCS16Ａ, A216‐WCB, ＦＣＤ450, ＦＣ200, etc
Connection Rating ： JIS 20K, ASME 300#
Size ： 15Ａ(1/2")～250Ａ(10")
Material ： SCS13A, SCS14A, SCS16Ａ, A216‐WCB, etc
Chemical, Oil Refinery, Petrochemical, Steel, Pulp & Paper, Power plant, Gas system, General and etc
Anti-static, Gland O-ring seal, Liquid seal, Key-Rock, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port and etc
