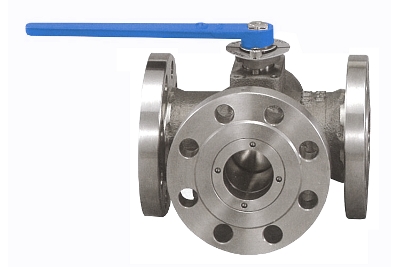

This is a trunnion-type 3-way ball valve that performs switching and branching operations with a single unit.
●In addition to powders, slurries, high-viscosity fluids, and high-temperature fluids, which are difficult to handle with soft sheets, they can be used under severe conditions such as high opening and closing frequency.
●Since the ball and rotating slide parts are hardened, they are not rubbed and have excellent durability.
●It is possible to cope with all types of fluids by changing the curing process of the ball and sheet depending on the fluid.
Connection Rating ： JIS10K, JIS20K, ASME 150#, ASME 300#
Size ： 15A(1/2”)～200A(8”)
Material ： SCS13A, SCS14A and other
Ball ： Isoniter, New kunuc, Mmetco 16c
Sheet ：Stellite 6
Diverting for high pressure condition (over 1MPa fluid)
Diverting for big differential pressure line
Neccessary for high durability line
Petrochamical, steel, etc
Anti-static, Gland O-ring seal, Key-Rock, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port
