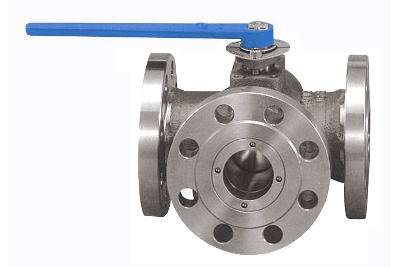

D33 TRUNNION MOUNTED 3-WAY BALL VALVE

Features

This model is 3-way, 4-seats ball valve can be used for high temperature service. With trunnion mounted design, can be gotten high duravility and stable seal performance under high temperature condition.

●Sealing is tight with uniformity specific pressure and torque is stable by spring at back of ball seat.

●It is suitable for protection of cavity expansion, temperature fluctuation, and pressure fluctuation.

●Valve body is combined unit for body & cap, so weight is light and face to face dimension is short. It means compact body.

*Standard model adopted rubber o-ring for some wetted parts. In case of fluid is solvent, please contact us.



Specification

Production Range

Connection Rating
JIS10K, JIS20K,  ASME150#, ASME300#
Size
15(1/2")~200(8")
Material
SCS13A, SCS14A, etc


Usage

Diverting for high pressure condition (over 1MPa fluid)

Diverting for big differential pressure line

Neccessary for high durability line

Petrochamical, steel, etc



Option



Anti-static, Gland O-ring seal, Liquid seal, Key-Rock, Long bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port and etc
