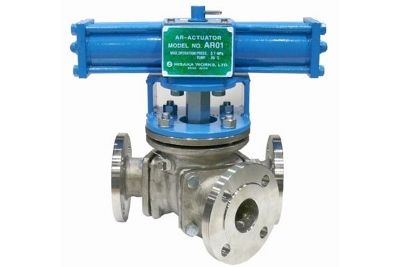

This Y-type, 3-way ball valve has metallic ball seat. It is available to use for powder, slurry, high viscocity fluid, high frequency condition that is difficult to avail for soft seat.

●Ball part and rubbed part by rotating are treated hard facing, so protected damage and can be realized getting high durability.

●This valve is suitable for many kinds of fluid by selection hard facing treatment for ball and ball seat depends on fluid.

Production Range
Connection Rating　： 　JIS10K, ASME 150#
Size　： 　25A(1”)～300A(12”)
Material　： 　SCS13A, SCS14A, SCS16A


Hard Facing
  Ball  :  HARD CHROME PLATING                                                   ISONITE (Salt Bath Nitriding)                                             NEW KANUC (Vacuum Evaporation Gas Nitriding)                 METECO-16C (Self-Fluxing Alloy Spraying Ni basis)

  Seat  :  Stellite No.6

Tolerable Seat Leakage
ASME/FCＩ 70-2　Class IV

High hardness, High speed conveying powder

Anti-static, Gland O-ring seal, Liquid seal, Special Painting, Buffing, Electro Polishing, Beveling port, port surface anti-erosion treatment, Ferrule end, Groove flange and etc
