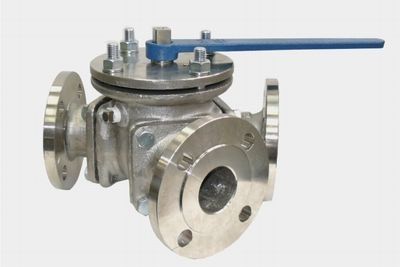

HY1/HY2 Y-TYPE 3-WAY BALL VALVE

Features

This model is diverting y-type 3-way ball valve, and it is suitable for pneumatic conveyer line(powder/Pellet).

●This model is trunnion mounted design can be perfect seal, and
 realized long operation.
●3pcs of Body caps are separately attached to the body, can be
 arrange many kinds of flow direction(angle) for practical piping.
 Please refer the catalogue for the details.
●With erastic article in back of ball seat, protected decreasing seal
 performance and increasing troque of rotating at the same time.
●On each sealing part used o-ring for getting stable seal
 performance. Especially stem part is used double o-ring, and it can
 be protected trouble for powder fluid coming into.

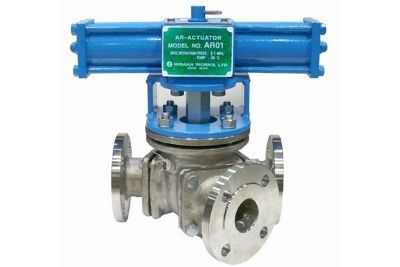

●135degree rorating special actuator is used for this valve.

Specification

Production Range
Connection Rating  : JIS10K, ASME 150#
Size  : 25A(1”)~300A(12”)
Material  : SCS13A, SCS14A, SCS16A, FC200 and others

*Please refer the PDF catalogue about the type of combination body caps and energized flow direction.

Usage

Conveyer system and diverting line for powder, high viscosity fluid.

Option

Anti-static, Gland O-ring seal, Key-Rock, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port, PIG spec., Ferrule ends and etc
