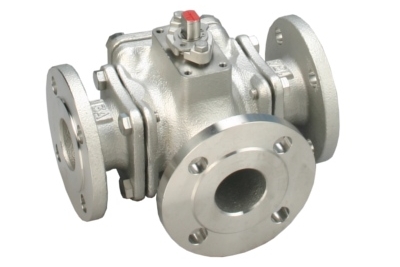

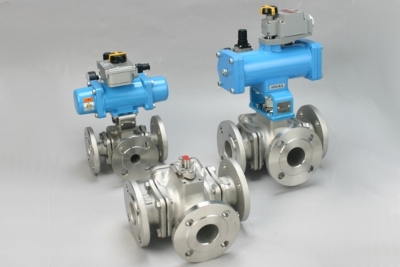

3-WAY(T & L-PORT), 4SEATS BALL VALVE,
●It can be operated for many kinds of divierting by one valve, and
can be protected mis-operation.
●It can be reduced piping cost and spece.
●There is not remaining fluid between valve and valve in case of
using 2-way valves.
●With 4-seat design, it can be selected flow direction.
●Gland part can be tightened easily, because it is fixed by bolts.
And it has anti-blow out stem design.
●It can be attached anti-static device.(Option)
●Stopper can be fixed valve position correctly.
●Key rock can be protected mis-operation by other of concerned
member. (Key: option)

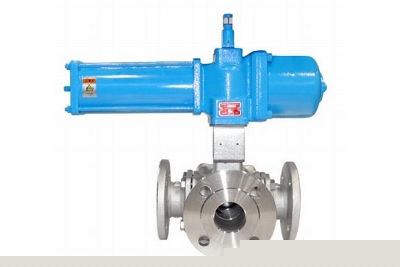

●It can be automatization without taking off valve from piping.
●Internal body can be cleaned by opening side cover. It can be
claened on the piping.
Connection Rating ： JIS10K, ASME 150#
Size ： 15A(1/2”)～300A(12”)
Material ： SCS13A, SCS14A, SCS16A and others
Selection of operation form
・Flow direction type
・Air fail position
＊Please refer the PDF catalogue for other details.
Changing flow ・Diverting・Mixing・Shutting off and so on.
Petrochemical market, food industry, steel market and so on.
Anti-static, Gland O-ring seal, Key-Rock, Long Bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port, Ferrule end, T&G flange and etc
