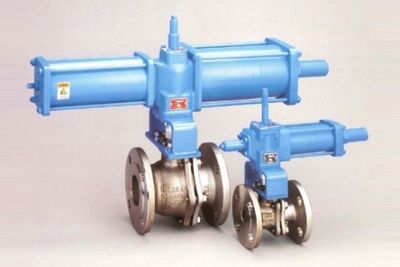

HF5-TDT,TST 2-STAGE CONTROL BALL VALVE

Features

This model is operated by 2-STAGE CONTROL actuator.It can be used for measuring system and protection of water hummer.

●It can be adjusted opening arbitrary ratio(max. 45°).
●Operation pressurised air will be supplied from solenoid valve directly, not through positionjer and so on. So can be operated quickly.
●Close to half open position with spring operation, can be fine adjusted flow rate.(TST model)


Specification

Production Range

Connection Rating
JIS 10K, ASME 150#
Size
15(1/2")150(6")
Material
SCS13A, SCS14A, SCS16, A216WCB, FCD450, FC200, etc


Actuator
TD1T~TD5T (Double acting)
TS1T~TS5T (Single acting)


Usage

流体・粉体等のの計量用に使用されるライン
ウォーターハンマー防止

Application for measuring liquid ・powder and others.

Protection for water hummer.

Supply Record

Option

Anti-static, Gland O-ring seal, Liquid seal, Key-Rock, Long bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port and etc
