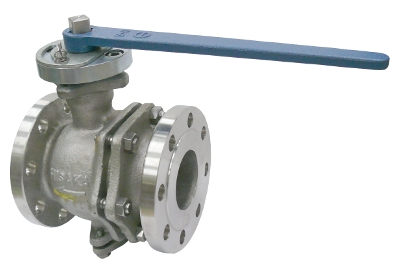

This valve can be controlled flow rate small to full flow by V shape ball.

●It does not have a ball seat at the down stream side. So  It's suitabe for powder service, because can be flown  smoothly.

●With the edge of V-ball and metal seat, it protect to bite  some fiber and others.

●At the time of full open, it will be full flow and get big CV value. So can be select smaller size compare with globe valve, and realized compact size/cost down.

Production Range

Connection Rating ： JIS 10K, ASME 150#
Size ：　 40Ａ(1-1/2")～200Ａ(8")
Material ： SCS13A, SCS14A, etc

Using for control valve in Pulp&Paper market.

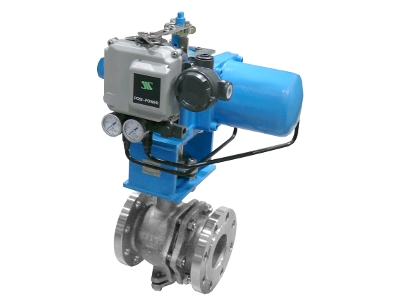

ON-OFF control valve for throttling powder service, or using for flow control application.

Available to use for liquid & gas fluid as control valve.

Anti-static, Gland O-ring seal, Liquid seal, Long bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port and etc
