Pharmaceutical liquid continuous sterilizer
Suitable for continuous sterilization and aseptic filling of medium products, drinks, and nutritional foods, for example.
Using plate/tube/spin-injection types for the heat transfer element to provide a sophisticated system that protects the quality of the processing solution.
- Liquid continuous sterilizer(UHT Plate type)
- High efficiency processing is achieved by
the original developed heat transfer plate.
See more

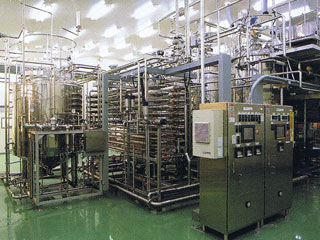

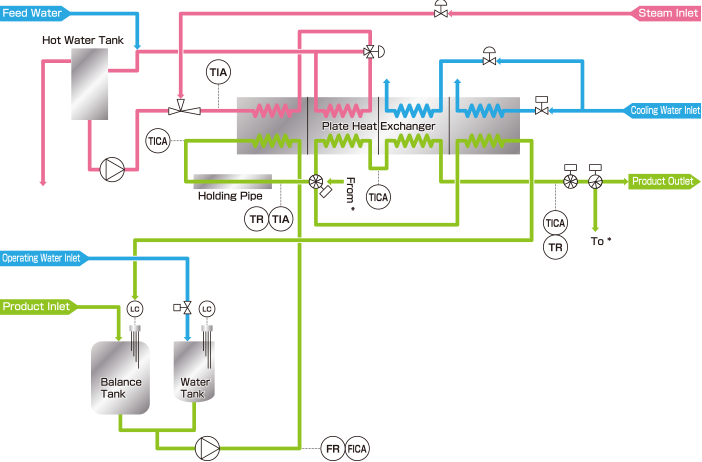

- Liquid continuous sterilizer(UHT Plate type)
- High efficiency processing is achieved by
the original developed heat transfer plate.
The FX series is used in HISAKA UHT (Ultrahigh temperature) offers excellent liquid replacement and detergency by a uniform liquid flow in the plate, allowing for long-term continuous operation.
The Fluorine resin cushion gasket (TCG) greatly improves durability and free of contamination.
Features
- Own developed Plate FX series improves yield and allows for long-term operation.
- The use of fluorine resin cushion gasket reduces foreign matter contamination, residual fragrance, and the frequency of gasket replacement.
Applications
Medium products, injections, oral/enteral drugs, drinks, nutritional foods, herbal medicines, etc.
- Liquid continuous sterilizer(Tube type)
- Compatible with a variety of liquids in an
excellent detergency
See more

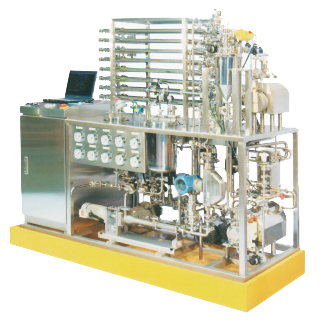

- Liquid continuous sterilizer(Tube type)
- Compatible with a variety of liquids in an
excellent detergency
Compatible with a variety of liquids such as high viscosity liquid, and the small wetted area of
the gasket realized excellent detergency.
Double tube type for small-volume production and multi tube type for large volumes production
can be proposed.
Features
- Many types of liquid are applicable, and it can be applied to products from low to high viscosity (~10,000 mPa・S), containing solids and fibers.
- Excellent liquid replacement is best for a wide variety of products.
- Easy maintenance due to limited use of gaskets.
- The small wetted area of the gasket reduces the flavoring and residual fragrance.
- Uniform flow realizes excellent detergency, allowing for long-term operation even for products
that are easy to burnt.

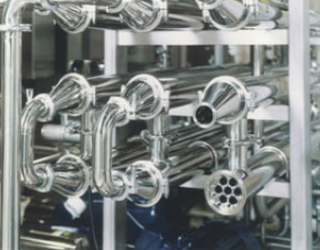

- Double tube type
- Multi tube type
Applications
Medium products, injections, herbal medicines, crude drug extract, undiluted intermediates,
other high viscosity liquids
- Liquid continuous sterilizer(Spin-injection type)
- Improving the problems of a conventional
direct heating system
See more

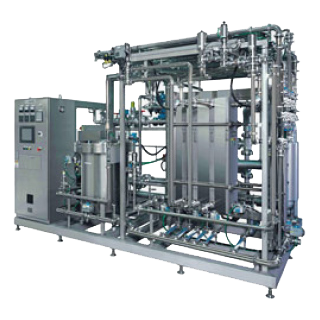

- Liquid continuous sterilizer(Spin-injection type)
- Improving the problems of a conventional
direct heating system
The system improves the problem of a conventional direct heating system.
By forcibly mixing and stirring the liquid and pure steam, the temperature is raised in a short time, allowing for long-term operation and uniform heating.
Features
- By forcibly mixing and stirring the liquid and pure steam at the steam blowing part to achieve uniform heating instantaneously.
- Self-pressurization enables operation with low-pressure steam, resulting in high quality sterilization by reducing the temperature difference between liquid and steam.
- The operation conditions of the control panel can be set freely for each type, such as rotation speed and back pressure, it is possible to handle a wide variety of processing.
- CIP ensures cleaning of the wetted part including the steam blowing part, and the disassembly and visual check of the equipment can be performed in a short time.
Applications
Medium products, liquid diet, oral/enteral drugs, herbal medicines, crude drug extract, etc.
