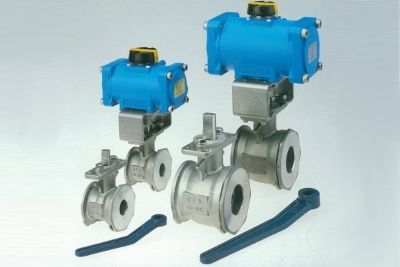

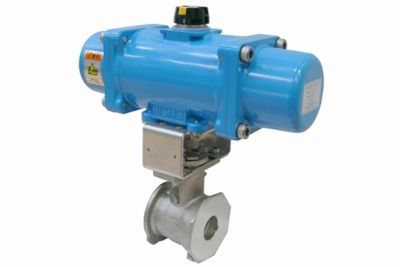

This flange less ball valve is able to attach on piping by putting between flanges, and realized “more light, more compact, more smart”.

• Face to face dimension of flanges is below half or one third shorter than flange standard type ball valve, suitable for confined space.
• Weight is nearly same with screw type ball valve, loading weight to pipe is small and can be decreased piping support.
• It is not necessary to use union joint as screw type.
• As protection of falling, wing is located on gland part and guide is on valve’s outer for easily center finding.
• Ball seat is same with standard ball valve.

Production Range

Connection rating

JIS 10K

Size

10A(1/4”)～50A(2”)

Material

SCS13A

For piping in small and confined space.

Anti-static, Gland O-ring seal, Key-Rock, Special Painting, Oil&Water Free, Buffing, Electro Polishing, Beveling port and etc.
