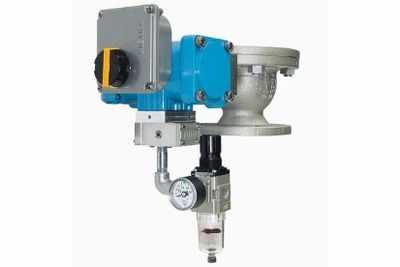

Tank bottom ball valve is used for tank bottom, and this design is reduced stagnated fluid extremely. It is used for many kinds of reactor and reaction tank.

• Surface of ball is same lever with tank bottom, extremely little stagnated fluid and fluid can be mixed completely.
• Operation is easy in confined space under the tank, because it is operated by 90degree turn.
• With full bore design, discharging speed is high and time’s efficiency is high.
• In case of Jacket of tank and others are interfered with actuator, actuator can be attached appropriately by rink connector.
• By welding tank pad to tank bottom, attachment of valve is very easy.
• Packings are used same with standard valve(HF5), so realized quick delivery and easy repairing work.

Production Range

Connection Rating

JIS10K, ASME 150#

Size

25A(1”)～300A(12”)

Material

SCS13A, SCS14A, SCS16A and others.

This model is used for tank bottom, and used in petrochemical industries and so on.

Anti-static, Gland O-ring seal, Key-Rock, Long Bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port and etc
