This model is developed for Low Temp. application. It is suitable for brain (refrigerant) and low temp. gas.

• For reducing of influence in gland part depend on fluid’s temp.,
  material of gland paking is expansion graphite for standard spec.
  and it is protected leakage from gland at low temp. condition.
  It is able to select long bonnet type.(Option)

Production Range

Connection rating

JIS10K,ASME150#

Size

15A(1/2”)～100A(4”)

Material

SCS13A,SCS14A others

Temperature range

－50℃ ～

Other of Standard Spec.

• Oil & Water free treatment
• Making hole on ball’s surface of upstream side(to protect
  expansion inside cavity)
• Full bore
• Mat’l of Gland Packing & Gasket: Expansion Graphite

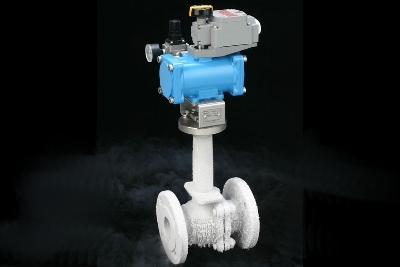

Long Bonnet (Option)

• Standard length 160mm
• Reducing influence of gland part by fluid’s temp..
• Easy for working to make insulation.

For brain(refrigerant) and liquefied gas for plant of many kinds industries Chemical / Food / Medical and others.

Suitable fluid

Ethylene Glycol, Propylene Glycol, Ethylene, Propylene, Butadiene, Ammonia, Chlorine, Carbon Dioxide, Acetylene, Ethene, Flon(R22, 23) and so on.

Anti-static, Key-Rock, Long Bonnet, Key-Lock System, Special Painting, Oil&Water Free, Buffing, Electro Polishing, Beveling port and etc
