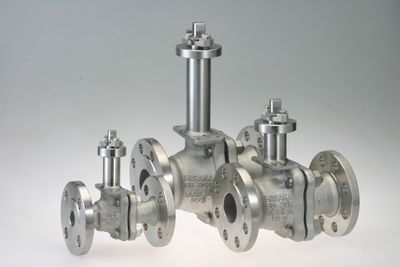

This model can be attached thermal insulation easily, because gland part is extended for general model (HF5). With this design, suitable for need keeping warm and cold fluid application

• Easy work for attaching thermal insulation.
• Gland point that in higher than insulation realized “easy insertion of hand lever”, “easy operation of valve” and “clearly checking valve position”.
• Length of gland is 160mm longer than general model.
• Long bonnet gland is keeping stock for short delivery time.

Production Range

Connection Rating

JIS 10K, ASME 150#

Size

15A(1/2”)～300A(12”)

Material

SCS13A, SCS14A, SCS16Ａ　and etc

Connection Rating

JIS 20K, ASME 300#

Size

15A(1/2”)～250A(10”)

Material

SCS13A, SCS14A, SCS16Ａ　and etc

Length of Bonnet

HF(16LB) series (standard)
●Length of bonnet is 160mm longer than general model.

Available Model

HF5，HS5，HJ5，HF5(M1)，HJ5(M1) and etc
＊Not suitable for FC200, FCD body material. Because bonnet is attached by welding.　　
＊On-Off control valve is also suitable.

Application that need keeping warm/cold, High/Low temp., Chemical, Medicine and etc

Anti-static, Gland O-ring seal, Key-Rock, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port, PIG system, Hard Facing of Port, Ferrule ends and etc
