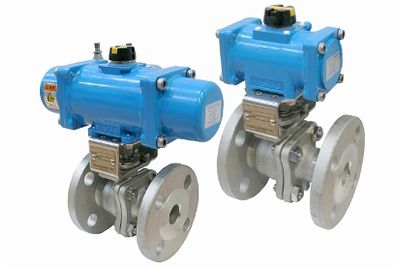

HF5(LP) FLOATING TYPE, 2-WAY BALL VALVE (LOW PENETRATION SEAT)
Features
This model is used LP seat that is protected penetration fluid to material seat in case of monomer fluid.
- PTFE has void(micro spot hall), but void of LP seat is quite little.
Therefore it has high performance of protect penetration for
monomer fluid. - Performance of this seat are high sealing, light & stable operation
torque and chemical resistance. - This seat is able to attach to standard valve (HF5).
Specification
- Connection Rating
- JIS 10K, ASME 150#
- Size
- 15Ａ(1/2”)～300Ａ(12”)
- Material
- SCS13A, SCS14A, SCS16Ａ, A216‐WCB, ＦＣＤ450, ＦＣ200 others

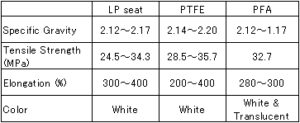

Characteristic of material
Result of gas permeation & chemical dip coating
Usage
Chloride Vinyl, Styrene, Butadiene, Propylene and other monomer fluid.
Option
Anti-static, Gland O-ring seal, Key-Rock, Long Bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port, PIG spec., Ferulle ends, T&G flange and etc
