HF5 FLOATING, 2-WAY BALL VALVE (FOR PIG LAUNCHER & RECEIVER)
Features
This model is for PIG launching and receiving.

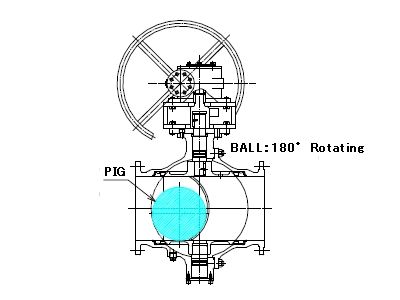

- PIG launched by 180℃ rotating.
- Shape of ball is special for PIG launching or receiving.
Specification
Production Range
- Connection Rating
- JIS 10K, ASME 150#
- Size
- 15A(1/2”)～300A(12”)
- Material
- SCS13A, SCS14A, SCS16A, A216-WCB, FCD450, FC200 and etc
- Connection Rating
- JIS 20K, ASME 300#
- Size
- 15A(1/2”)～250A(10”)
- Material
- SCS13A, SCS14A, SCS16A, A216-WCB and etc
Usage
Food, Medicine, Chemical and others(need cleaning inside piping)
Option
Anti-static, Gland O-ring seal, Key-Rock, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port, Hard Facing Port and etc
