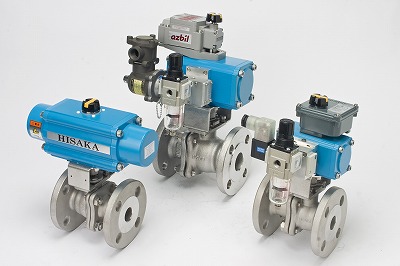

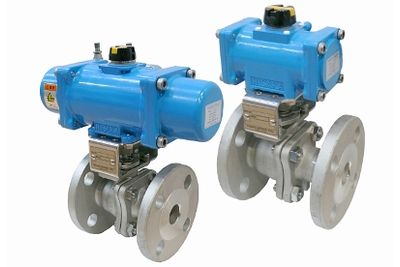

HF5 FLOATING TYPE，2-WAY BALL VALVE
Features
This model is for general application, and usable for
may kinds of industries(chｅmical, petrochemical, steel and so on.).
- Top of stem shape is rectangler, therefore it can be protected mis-operation.
- With standardization of ball seat “Maxtite PTFE”, it was realized to get a long life.
There are some seat materials, It can be selected material depends on application. - Fire safe construction
(Anti-blow out stem, secondary metal touch, metal touch ball seal.) - Anti-static device for releasing the remaining static electricity. (Option)
- Gland packing combined with stem bearing, and can get a perfectly seal and can keep it. And it is able to progress durability.
- Key rock device can rock at Full Open and Full Close position, and it can be protected mis-operation completely.
Specification
Production Range
- Connection Rating
- JIS 10K, ASME 150#
- Size
- 15A(1/2″)～300A(12″)
- Material
- SCS13A, SCS14A, SCS16Ａ, A216‐WCB, ＦＣＤ450, ＦＣ200, etc
- Connection Rating
- JIS 20K, ASME 300#
- Size
- 15A(1/2″)～250A(10″)
- Material
- SCS13A, SCS14A, SCS16Ａ, A216‐WCB, etc
Usage
Chemical, Oil Refinery, Petrochemical, Steel, Pulp & Paper, Power plant, Gas system, General and etc
Option
Anti-static, Gland O-ring seal, Liquid seal, Key-Rock, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port and etc
