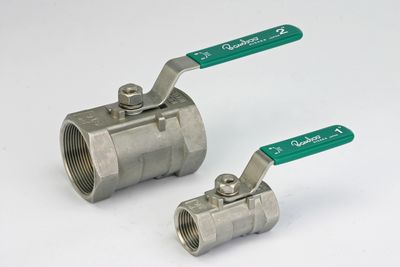

HBS（Bamboo） SCREW ENDS, 1-PIECE BALL VALVE (ECONOMICAL MODEL)
Features
Screw ends, 2-way, 1-piece body, economical model.
- Valve body is reduced bore and 1 piece design.
- With compact body and light weight, can be attached and operation
easily. - Suitable for utility line(water, air , etc), simple design and low cost valve.
Specification
Production Range
- Connection Rating
- RC（JIS B0203）
- Size
- 8A(1/4”)～50A(2”)
- Material
- SCS14A
- Max. operation press.
- 6.9MPa (water, oil)
4.4MPa (Gas)
- Max. operation Temp.
- 160℃
Usage
Utility Line(water, air and etc)
Option
Oil & Water Free treatment
