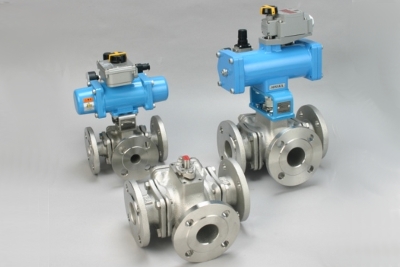

3-WAY(T & L-PORT), 4SEATS BALL VALVE,

• It can be operated for many kinds of divierting by one valve, and
  can be protected mis-operation.
• It can be reduced piping cost and spece.
• There is not remaining fluid between valve and valve in case of
  using 2-way valves.
• With 4-seat design, it can be selected flow direction.
• Gland part can be tightened easily, because it is fixed by bolts.
  And it has anti-blow out stem design.
• It can be attached anti-static device.(Option)
• Stopper can be fixed valve position correctly.
• Key rock can be protected mis-operation by other of concerned
  member. (Key: option)
• It can be automatization without taking off valve from piping.
• Internal body can be cleaned by opening side cover. It can be
  claened on the piping.

Production Range

Connection Rating

JIS10K, ASME 150#

Size

15A(1/2”)～300A(12”)

Material

SCS13A, SCS14A, SCS16A　and others

Selection of operation form

• Flow direction type
• Energized position
• Air fail position

＊Please refer the PDF catalogue for other details.

Changing flow ・Diverting・Mixing・Shutting off and so on.
Petrochemical market, food industry, steel market and so on.

Anti-static, Gland O-ring seal, Key-Rock, Long Bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port, Ferrule end, T&G flange and etc
