This is a glossary of terms that are found in
drawings and catalogs when using your HISAKA product.
| TCG | Fluororesin cushion plate gasket | Click here for details |
|---|---|---|
| T distance piece gasket | The gasket for non-wetted part of D-plate and E-plate. | |
| Test pressure | Pressure that is applied during a pressure resistance test to check the soundness of the equipment after it has been manufactured This pressure is indicated on the nameplate and the element configuration diagram |
|
| Thrust bearing | A part that consists of a box and a bearing Normally inserted between the long bolt head and S. frame on large models, to reduce load when tightening. |
|
| Tightening bolts and nuts | A part used to fasten the S. frame, heat transfer plates, and E. frame, to maintain pressure inside the equipment When using a large model, or if there is a large number of heat transfer plates, it might be necessary to use both long and short bolts accordingly. |
|
| Tightening dimension |
Dimension for controlling the tightening of the PHE
|
|

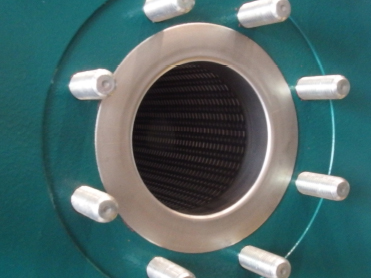

| TN nozzle | One of the linings for frame portholes Metal cover ring
|
|
| Trapezoidal flow | Flow of fluid in a heat exchanger -> Diagonal flow |
Click here for details |
| Tube flange | TN nozzle | |
| Two fluid mixture | Mixture of the fluids on the B side and the A side |
