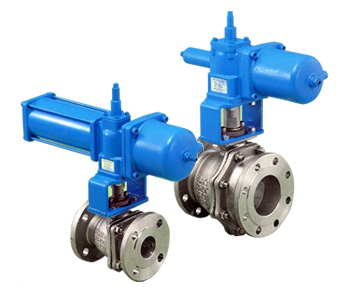

Features

Fluid Air
Maximum Operating Pressure 0.69MPa
(7kg/cm2G)
Permissible Environment Temperature -20°C~+80°C
Lubrication Oil No need
Guaranteed Operation Cycles 100,000 cycles
Rotation Angle 90 degree

Catalog

  • Mechanizm is a scotch yoke type with 90-deg.rotation and non-lubrication type.
  • The output torque of actuator is adjust with torque curve of valve, therefore it has high efficiency.
  • Operation pressure is Min. 0.39MPa ~ Max. 0.69MPa.
  • This model is suitable weather proof Enclosure, protected rainwater into by seals.

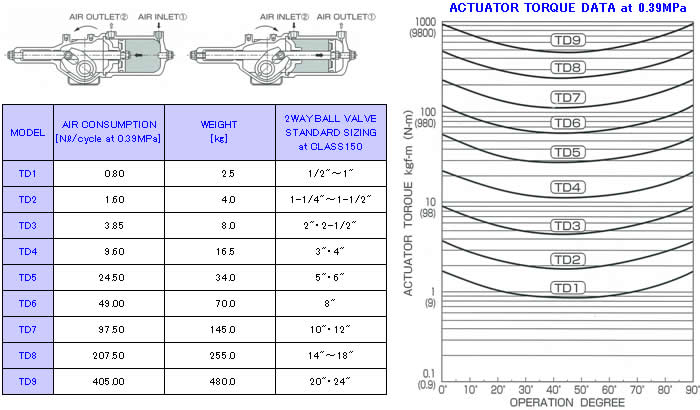

TD type double acting actuator

TD type double acting actuator

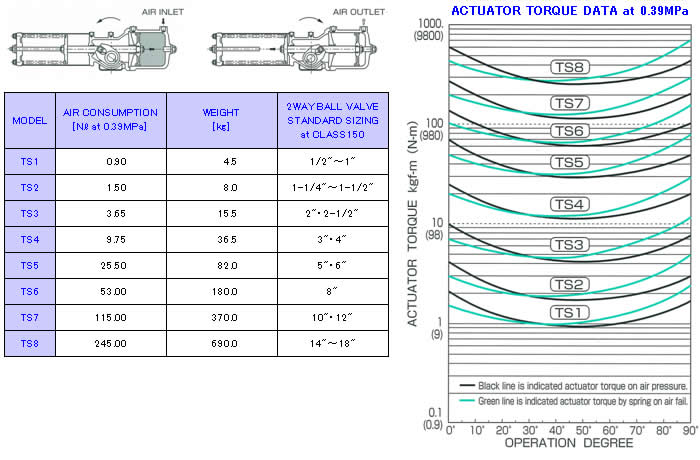

TS type single acting actuator

TS type single acting actuator

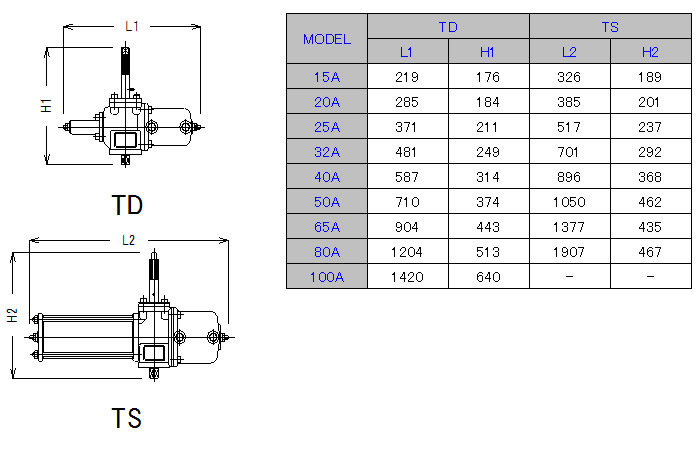

DIMENSION
