Jet dyeing machine

The development of "Circular" brought energy savings through the use of low liquid ratio dyeing,
in addition to saving resources, we have provided various models focused on stable processing integrity
and the accompanying productivity improvements.
Through the selection of models that suit for the processed products and customer's needs and
the addition of a suitable system for the purpose, we provide low costs, high productivity, high quality,
and stable processing integrity.

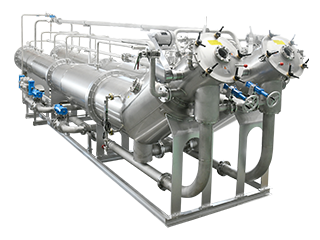

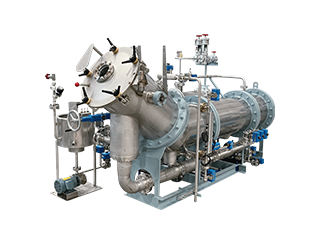

Circular CUT-ZR
An environmentally-friendly new type of Circular that does not required excess water.
See more

In combination with High-Performance options, it contributes to further energy saving and productivity improvement of Dyeing Factory.

Energy Saving (less water and less energy)

  • It realizes low liquor ratio by new structures.
  • EX) Liquor Ratio for PET (Knit) 1:4~6

Reduction of Dyeing Trouble / Reproducibility Improvement

  • At low temperature, special inner case eliminates the clogging of the rear part of the chamber.
  • New design of the optimum slope in rear part improves fabric transportation smoothly and keeps stable loading condition.
  • Problems such as Pilling, Friction mark and Crease mark are eliminated.

Productivity Improvement

  • By loading the two ropes, it enables shortening of processing time.

Easy Operation / Space Saving Design

  • Simple structure with operability improvement realizes reduction of losses and workloads.
  • Easy installation and Compact design of various High-Performance systems.

Specification

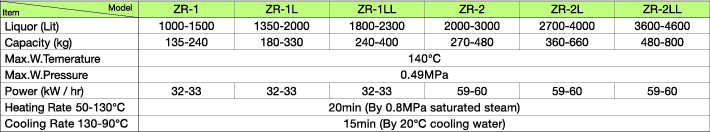

Performance (Subject to the kind of Fabrics)

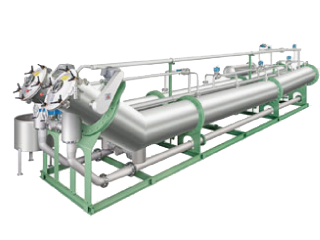

Circular CUT-XF
Circular with easy operation and space saving design
See more

In combination with a new, highly functional system, it offers further improvements in productivity of the dyeing plant, lower costs and also eliminates human differences.

Improving productivity and reducing costs

  • The new structure improves the effective internal volume (15% better than current models) and contributes to solve the wrinkling problem of high difficulty materials.
  • With the newly developed high temperature discharge & rinsing system (HTRS) and low liquid washing system (LLR), contributing to the time reduction and running costs.

Reduction of accident rate and improvement of reproducibility

  • Special tanks at the end of front and rear eliminate clogging at the rear and achieve stable running from low to high temperature by realizing uniformity of stagnation balance.
  • In the rear special tank, machining defects due to conventional low nozzle pressure are eliminated.
  • With the newly developed Automatic Setting System (EDIC's), Powder Dye Dissolving System (HDE), and New Injection Control System, eliminating human differences.

Easy operation and space saving design

  • Sophisticated and simple structure improves operability and reduces workloads and losses.
  • Installation space for various high performance systems is also secured.

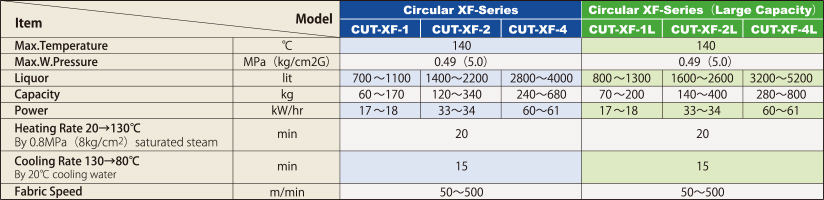

Specification

Model : CUT-XF (Jet dyeing machine series)

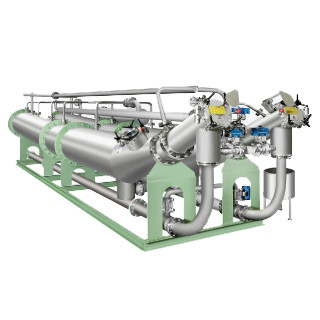

Circular CUT-AR
Optimal for high capacity relaxing, untwisting, and dyeing processes
See more

Offering improvement of productivity through its high capacity, low liquid ratio, and excellent stable running of all thicknesses fabrics.

Quality improvement

  • Improved the structure of the arrangement zone to ensure the stable running performance from light to heavy weight.
  • Improvement of level dyeing quality prevents processing defects such as wrinkles and irregularities, and provides stable supply of high quality products.

Reduction of processing costs

  • Installation space is the same as that of standard machines, but productivity of 1.5 times
    or more is secured.
  • Reducing the running and labor costs by improving production efficiency and low liquid ratio.

Delivery Correspondence

  • Contributing to handling delivery times by reducing the accident rate and reworking rate.
  • Improved reproducibility by using supply water flow meter to control liquid ratio and standard equipment for flame retardant-compliant cleaning function.

Specification

Model : CUT-AR (Jet dyeing machine series)

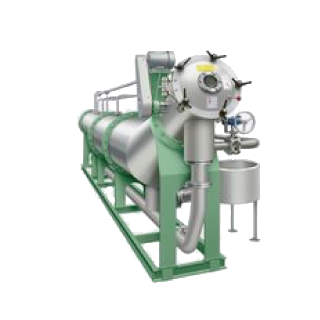

Circular CUT-SP
Optimal for dyeing processes of natural, composite and synthetic fibers
See more

We have improved the quality of delicate fibers (natural and composite fibers, etc.) by dealing with the problems of fluffing, felting, and rubbing, etc.
Short time dyeing under the identical liquid ratio is also possible.

High quality

  • Achieving quality improvement of synthetic thin fabrics (15-30d) by eliminating the defects such as wrinkles and rubbing
    Nylon filament thin fabrics (15-30d), nylon processed yarn fabrics (15-50d), polyester filament thin fabrics (20-30d), etc.
  • Achieving quality improvement of synthetic stretch fabrics by eliminating the defects such as wrinkles and rubbing.
    Nylon/PU woven knitted, polyester/PU woven knitted, CDP/PU woven knitted, etc.

Improving productivity

  • High speed operation of 10~20% of conventional operation improves the uniformity of dyeing and shortens the time required for temperature rise and cleaning.
  • Improving production efficiency and reduce wasteful processing costs by reducing the accident rate and reworking rate.

Specification

Model : CUT-SP (Jet dyeing machine series)

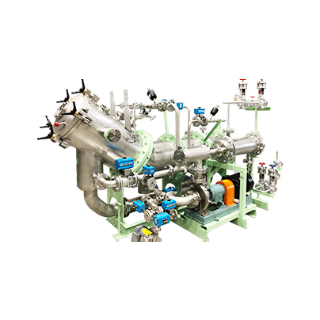

Circular testing machine
Small lot dyeing processes such as test dyeing and sample dyeing are possible.
See more

Liquid ratio and finished quality are equivalent with actual production machine.

High quality

  • Achieving quality improvement of synthetic thin fabrics (15-30d) by eliminating the defects such as wrinkles and rubbing
    Nylon filament thin fabrics (15-30d), nylon processed yarn fabrics (15-50d), polyester filament thin fabrics (20-30d), etc.
  • Achieving quality improvement of synthetic stretch fabrics by eliminating the defects such as wrinkles and rubbing.
    Nylon/PU woven knitted, polyester/PU woven knitted, CDP/PU woven knitted, etc.

Improving productivity

  • High speed operation of 10~20% of conventional operation improves the uniformity of dyeing and shortens the time required for temperature rise and cleaning.
  • Improving production efficiency and reduce wasteful processing costs by reducing the accident rate and reworking rate.

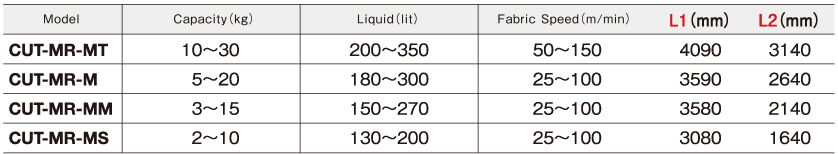

Specification

Model : CUT-MR (Jet dyeing testing machine series)
