HF5 FLOATING, 2-WAY BALL VALVE (FOR PIG LAUNCHER & RECEIVER)

Features

This model is for PIG launching and receiving.

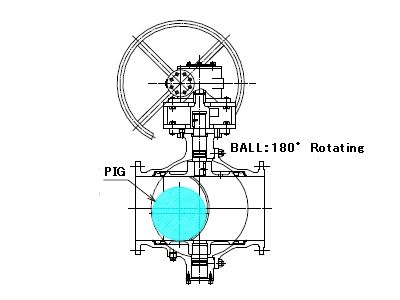

●PIG launched by 180℃ rotating.
●Shape of ball is special for PIG launching or receiving.

Specification

Production Range
Connection Rating : JIS 10K, ASME 150#
Size : 15A(1/2”)~300A(12”)
Material : SCS13A, SCS14A, SCS16A, A216‐WCB, FCD450, FC200                   and etc

Connection Rating : JIS 20K, ASME 300#
Size : 15A(1/2”)~250A(10”)
Material : SCS13A, SCS14A, SCS16A, A216‐WCB and etc

Usage

Food, Medicine, Chemical and others(need cleaning inside piping)

Option

Anti-static, Gland O-ring seal, Key-Rock, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port, Hard Facing Port and etc
