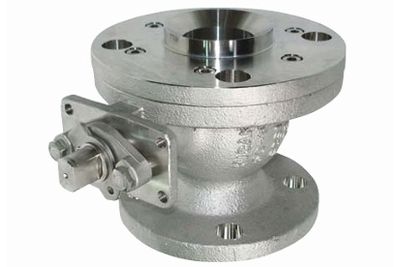

TB5 TANK BOTTOM BALL VALVE

Features

Tank bottom ball valve is used for tank bottom, and this design is reduced stagnated fluid extremely. It is used for many kinds of reactor and reaction tank.

●Surface of ball is same lever with tank bottom, extremely little
 stagnated fluid and fluid can be mixed completely.
●Operation is easy in confined space under the tank, because it is  operated by 90degree turn.
●With full bore design, discharging speed is high and time's
 efficiency is high.

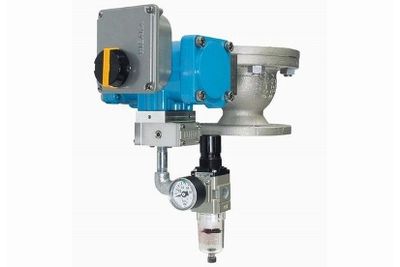

●In case of Jacket of tank and others are interfered with actuator,
 actuator can be attached appropriately by rink connector.
●By welding tank pad to tank bottom, attachment of valve is very
 easy.
●Packings are used same with standard valve(HF5), so realized quick delivery and easy repairing work.

Specification

Production Range
Connection Rating  :  JIS10K, ASME 150#
Size  :  25A(1”)~300A(12”)
Material  :  SCS13A, SCS14A, SCS16A and others.

Usage

This model is used for tank bottom, and used in petrochemical industries and so on.

Option

Anti-static, Gland O-ring seal, Key-Rock, Long Bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port and etc
